4-Bay RAID USB 3.0/eSATA SSD Buslink External Desktop Drive

$1,799.99$3,799.99

4-Bay RAID USB 3.0/eSATA External Desktop SSD Drive

WARNING for California resident
  • 8TB
  • 16TB
Clear

Product Description

This BUSlink 4-Bay RAID SSD drive supports large capacity and USB 3.0/eSATA interface. It supports Intelligent RAID function: RAID 0, RAID 3, RAID 5, RAID 10, and Large. Removable HDD trays support hot-plug replacement of drives (only for RAID with redundancy mode). HDD intelligent sleep function is supported. The LCM display and buttons support convenient setting of RAID modes and status display. Optional password allows locking of RAID settings. Cooling fan maintain safe operating temperature. Skid proof and shockproof rubber feet mat ensure safe operation. Using metal alloy case, heat is easily dissipated and with less plastic used, more recyclable and eco friendly too.

Features

  • SSD drives inside for durability and shock resistance
  • Up to 64TB in RAID 0 (4 x 16TB) capacity at present, can be larger when larger capacity drive is available
  • 4 drives included and installed in trays
  • Supports 5 RAID mode: RAID 0, RAID 3, RAID 5, RAID 10, and Large. Shipped from factory in RAID 0 supporting the largest capacity but no redundancy. Could be changed to other RAID modes to allow redundancy, but will see less capacity.

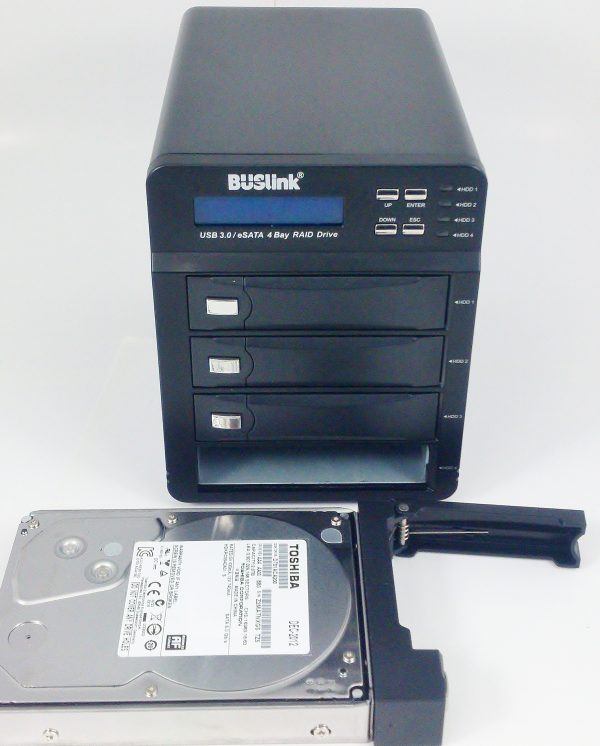

  • Removable 3.5” HDD tray supports hot-plug replacement of drive (RAID mode with redundancy only)
  • Support HDD intelligent sleep function
  • Cooling fan maintain safe operating temperature
  • Skid proof and shockproof rubber feet mat ensure safe operation
  • Self-powered, AC adapter included
  • Transfer rate:
    • USB 2.0: Up to 480 Mbits/s
    • USB 3.0: Up to 5 Gbits/s
    • eSATA: Up to 6.0 Gbits/s
  • Drive: Pre-formatted NTFS SATA drive (usable in PC & Linux, need to reformat to use in Mac)
  • Item dimension: 8.3″ x 5.5″ x 7″
  • Item weight: 12.4lb
  • Shipping dimension: 11.7″ x 10″ x 9″
  • Shipping weight: 16.5lb
  • ECCN: 5A992.c
  • HTS: 8471705065

System Requirement

  • eSATA port with AHCI mode to support hot-plug
  • USB 3.0 SuperSpeed port to achieve USB 3.0 transfer speed
  • Backward compatible to USB 2.0 Hi-Speed port with USB 2.0 transfer speed
  • Mac OS X 10.4 or later
  • Microsoft Windows 10, 8, 7, Vista, XP
  • Windows Server 2019, 2016, 2012, 2008, 2003. Does not work with 2000 Server
  • Linux
  • 2TB or smaller will support Windows XP; larger than 2TB requires GPT support and does not support Windows XP

Package Contents

  • BUSlink USB 3.0/eSATA 4-bay RAID external SSD drive
  • USB 3.0 A to B cable
  • eSATA cable
  • 12V 4-6A DC Full range switching power adapter
  • User Manual

Additional information

Weight 16.5 lbs
Dimensions 11.7 × 10 × 9 in
Size

8TB, 16TB
